• Optimum aluminum railing - box kits of ornamental railing with sections of deck and stair railings set up.

IN STOCK

Aluminum Railing – the Elegant Alternative to Iron and Steel Railing Systems

Optimum Aluminum Railing is a Fence & Deck Supply-exclusive product designed for customers that want a more decorative product that’s still easy to install and requires no maintenance.

We stock the product in 6′ and 8′ panel lengths in black and white. Stair panels are also available.

Optimum Aluminum Railing, The Essential Upgrade

The Optimum Aluminum Railing system is a boxed kit system that assembles easily and quickly. Compared to steel, aluminum is cooler to the touch and compared to wood and vinyl, Optimum requires less maintenance and is more durable.

The railing is powder-coated with a textured, matte finish and is available in two stock colors (Black and White) and two special order colors (Bronze and Khaki). The boxed kits come in 6′ and 8′ lengths, and stair kits and secondary handrails are in inventory.

Durable & Long Lasting

When considering a railing for your deck or patio, strength and durability are essential. Optimum railing complies with the stringent IRC-IBC building code requirements. Unlike other railing systems, Optimum also offers a secondary handrail for applications with additional safety is required.

Unmatched Beauty

The attractive Optimum railing offers elegance beyond performance. From the elegant top rail designed to keep the balusters in place and provide a grippable component that is comfortable to the hand. Our 2.5″ posts add dimension that smaller profile posts do not, and the post can be finished with a beveled post cap and base flange.

Consider Optimum, offered exclusively through Fence & Deck Supply.

Optimum Aluminum Railing Components

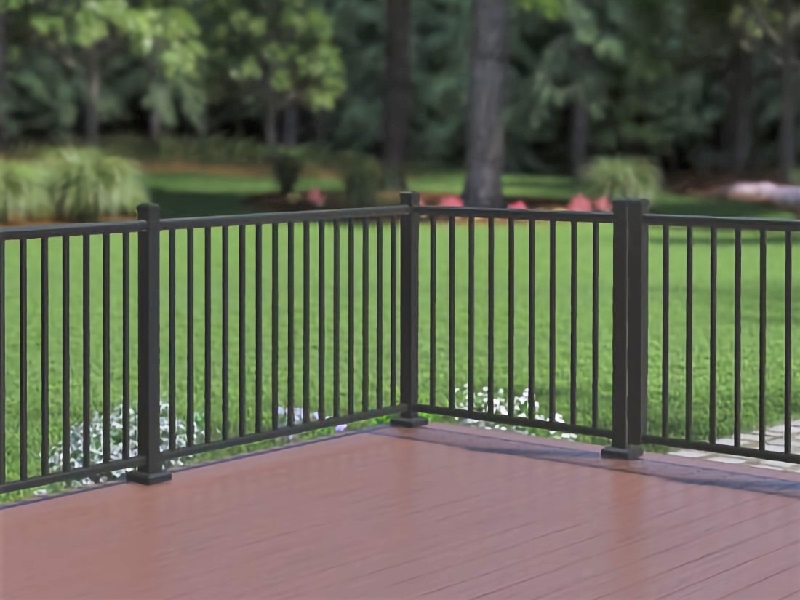

Level Railing

1
2
3
4
5
6
7
8
9
Exploded view of a panel of Optimum Aluminum Railing
1
An Optimum Aluminum Railing Top Rail
Level Top Rail
2
An Optimum Aluminum Railing - Level Top Rail
Level Bottom Rail
3
An Optimum Aluminum Railing Baluster
Optimum Aluminum Railing Baluster
4
An Optimum Aluminum Railing Post
Optimum Aluminum Railing Post
5
An Optimum Aluminum Railing Foot
Railing Foot
6
An Optimum Aluminum Railing Post Cap
Post Cap

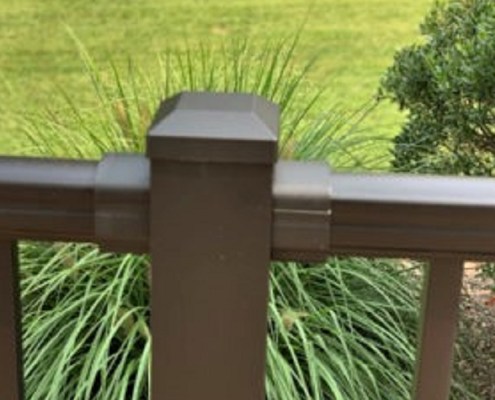

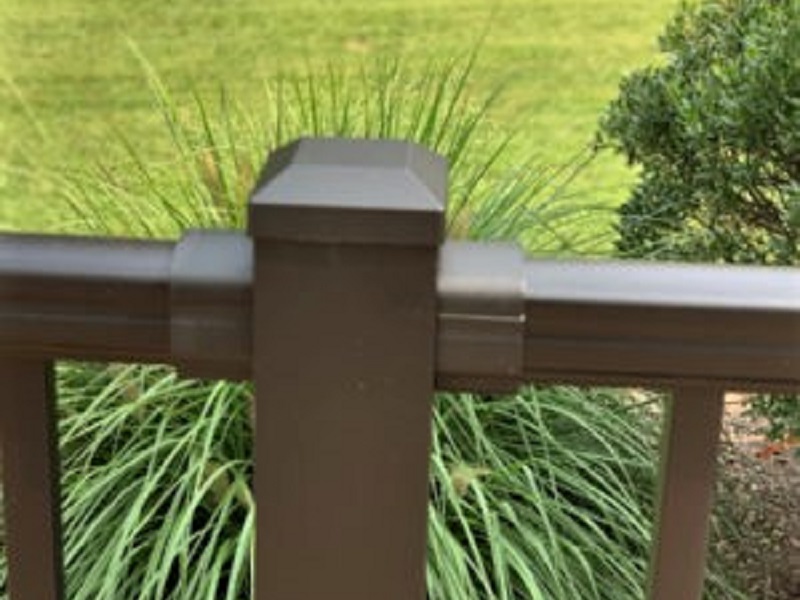

7
An Optimum Aluminum Railing Top Rail Bracket
Level Top Rail Bracket
8
An Optimum Aluminum Railing Bottom Rail Bracket
Level Bottom Rail Bracket
9
An Optimum Aluminum Railing Post Base Flange Cover
Post Base Flange Cover
PartDimensions
1. Top Rail– 1.646″ H x 1.716″ W
– 0.080″ Wall Thickness
– Nubs pre-installed
2. Bottom Rail– 1-3/8″ H x 1-3/8″ W Nom.
– 0.080″ Wall Thickness
– Nubs pre-installed
3. Baluster– 3/4″ x 3/4″ Square
– 0.050″ Wall Thickness
4. Post– 2.5″ x 2.5″
– 0.100 Wall Thickness
– Flange base
5. Foot Block
6. Post Cap
7. Top Rail Bracket
8. Bottom Rail Bracket
9. Post Base Flange Cover

Stair Railing

1
2
3
4
5
6
7
8
Exploded view of a panel of Optimum Aluminum Railing - Stair Railing
1
An Optimum Aluminum Railing - Stair Top Rail
Stair Top Rail
2
An Optimum Aluminum Railing Bottom Rail
Stair Bottom Rail
3
An Optimum Aluminum Railing Stair Baluster
Optimum Aluminum Railing Baluster
4
An Optimum Aluminum Railing Post
Optimum Aluminum Railing Post
5
An Optimum Aluminum Railing Post Cap
Post Cap
6
An Optimum Aluminum Railing - Stair Top Bracket
Stair Top Rail Bracket
7
An Optimum Aluminum Railing - Level Bottom Rail
Stair Bottom Rail Bracket
8
An Optimum Aluminum Railing Post Base Flange Cover
Post Base Flange Cover
PartDimensions
1. Top Rail– 1.716″ H x 1.646″ W

– 0.080″ Wall Thickness
– Hole-punched for balusters
2. Bottom Rail– 1.320″ H x 1.352″ W
– 0.080″ Wall Thickness
– Hole-punched for balusters
3. Baluster– 3/4″ x 3/4″ Square
– 0.050″ Wall Thickness
4. Post– 2.5″ x 2.5″
– 0.100 Wall Thickness
– Flange base
5. Post Cap
6. Top Rail Bracket– Swivel
7. Bottom Rail Bracket– Swivel
8. Post Base Flange Cover

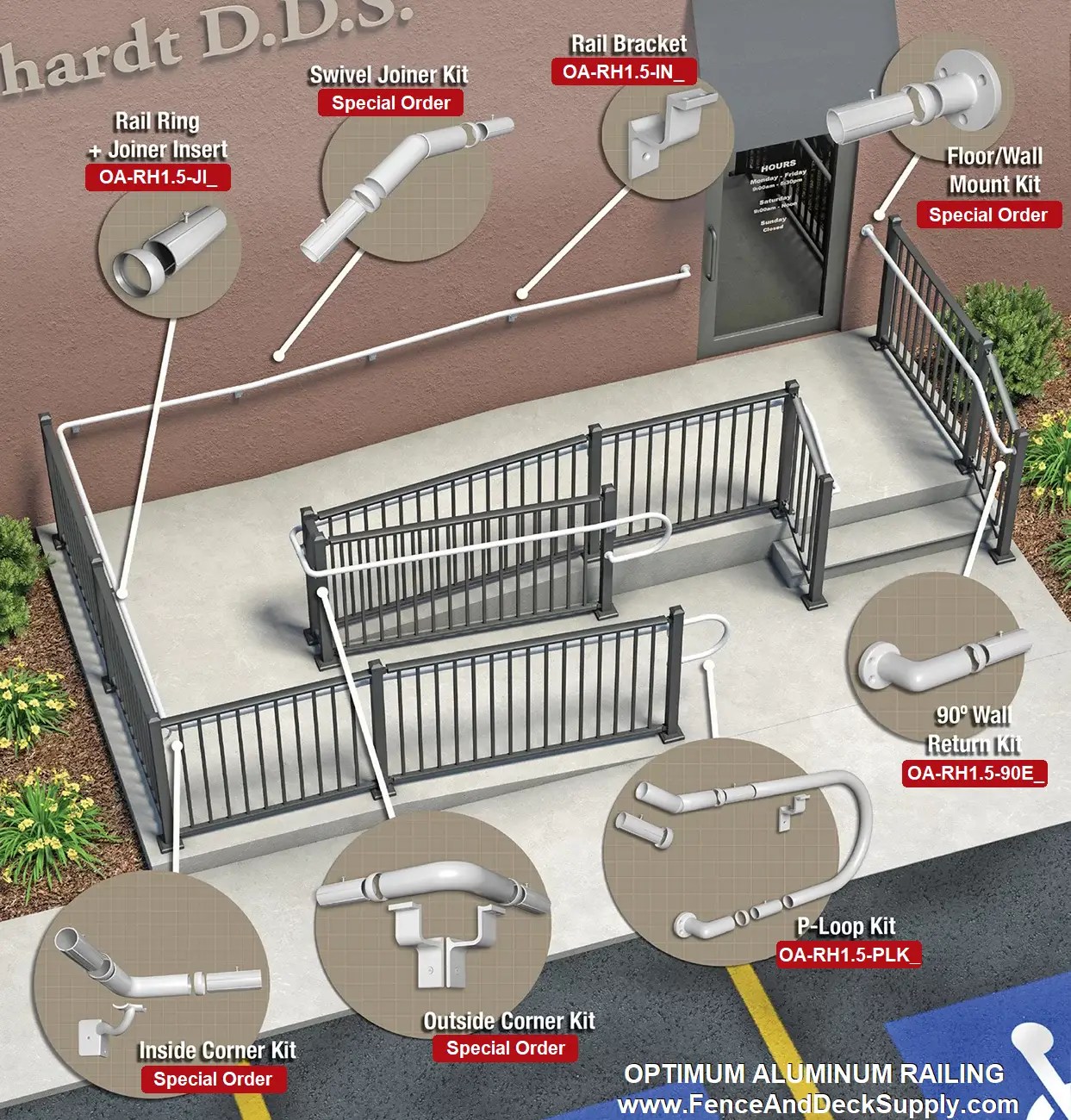

Secondary Handrail

1
2
3
4
1
OA-RH1.5-JI# Handrail Joiner Insert with Ring & screw
Secondary Handrail Joiner Insert with Ring & Screw
2
OA-RH15-IN# Handrail Bracket
Secondary Handrail Bracket
3
OA-RH15-90E# Handrail 90 Degree Elbow
Secondary Handrail 90 Degree Elbow
4
OA-RH15-PLK# Handrail P-Loop Kit
Secondary Handrail P-Loop Kit
PartDimensions
1. Rail Ring + Joiner Insert– OA-RH1.5-JIB (Black)
– OA-RH1.5-JIW (White)
2. Rail Bracket– OA-RH1.5-INB (Black)
– OA-RH1.5-INW (White)
3. 90° Wall Return Kit– OA-RH1.5-90EB (Black)
– OA-RH1.5-90EW (White)
4. P-Loop Kit– OA-RH1.5-PLKB (Black)
– OA-RH1.5-PLKW (White)

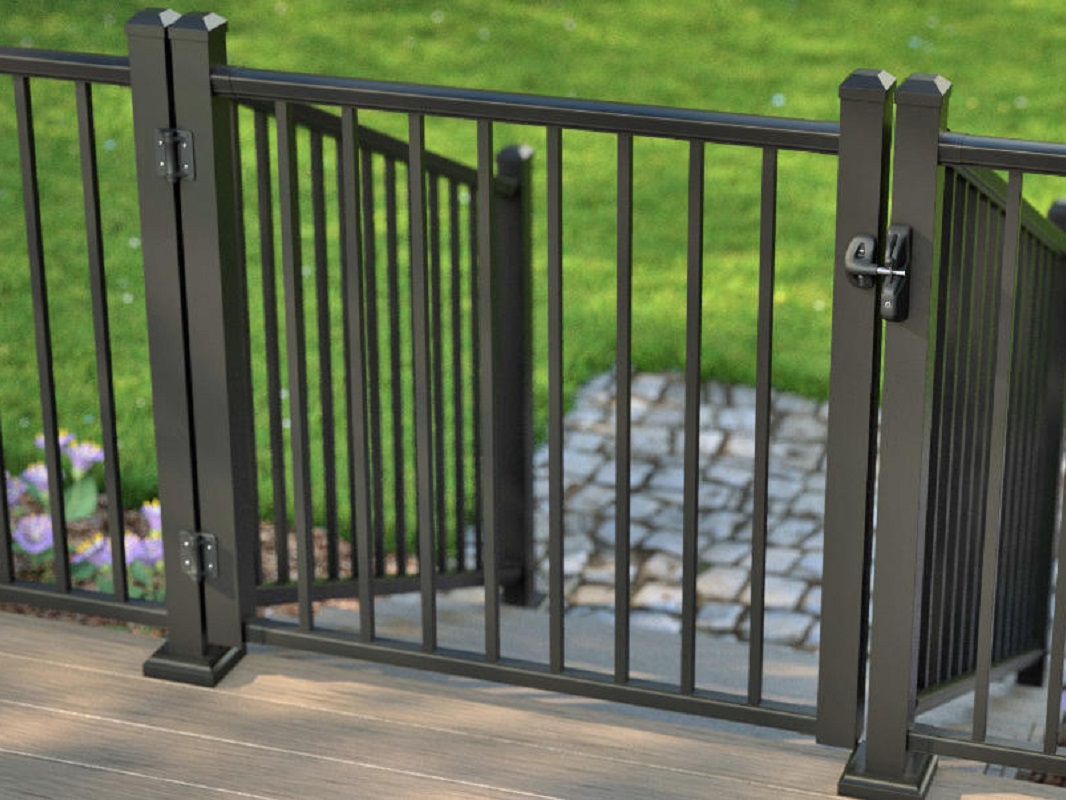

Aluminum Railing Gates

Optimum Railing - Black Railing Gate
Uprights with brackets and caps for Optimum Gate Panel

Optimum Railing Gate

  • 36″, 42″, 48″ opening
  • Assembled from 1 railing panel kit (cut rails to size) + 2 uprights with brackets and caps

Additional Items (Special Order)

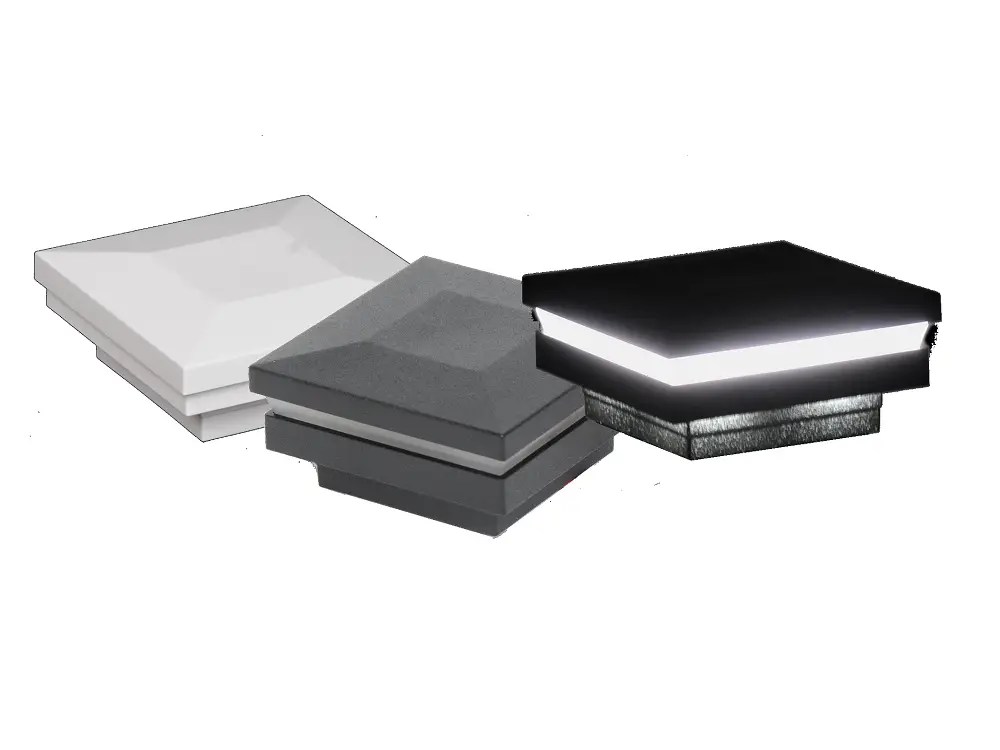

Low Voltage Post Cap Light Options

Lights

  • Available in Downward, Mid-Cap and Hybrid
  • Available in black and white (stock) / bronze, khaki (special order)
  • Low voltage lights with transformer
  • Easy to install

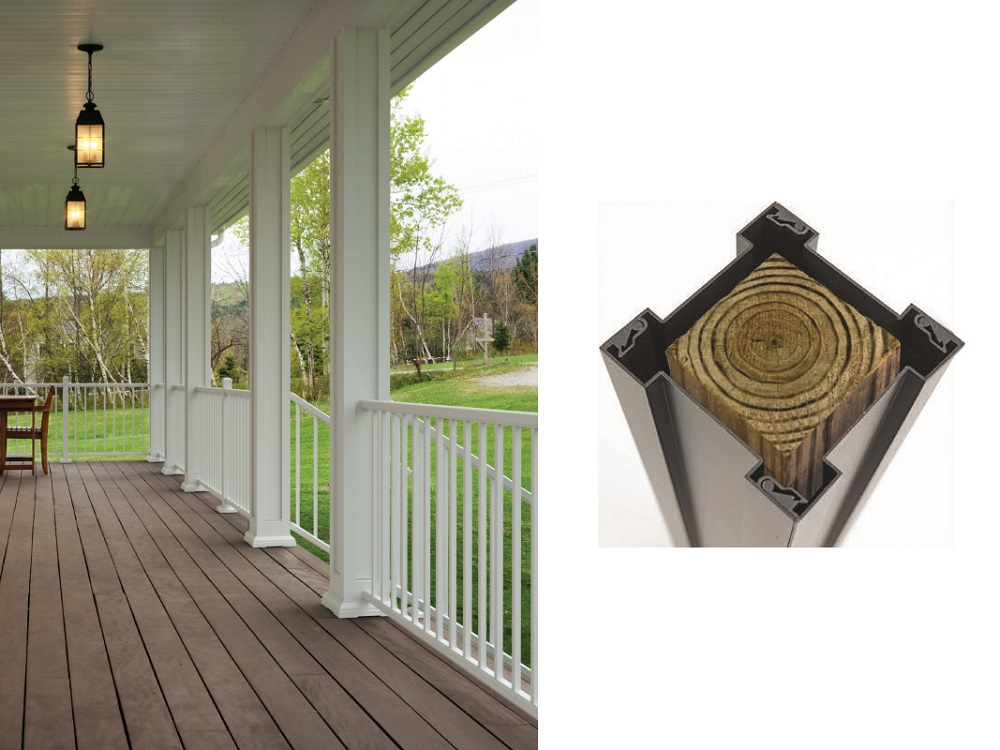

Optimum Railing - Column Wrap

Column Wrap

  • Fastening Hardware NOT included.
  • Use a 6” Wrap for 4×4 wood posts and an 8” Wrap for 6×6 wood posts.

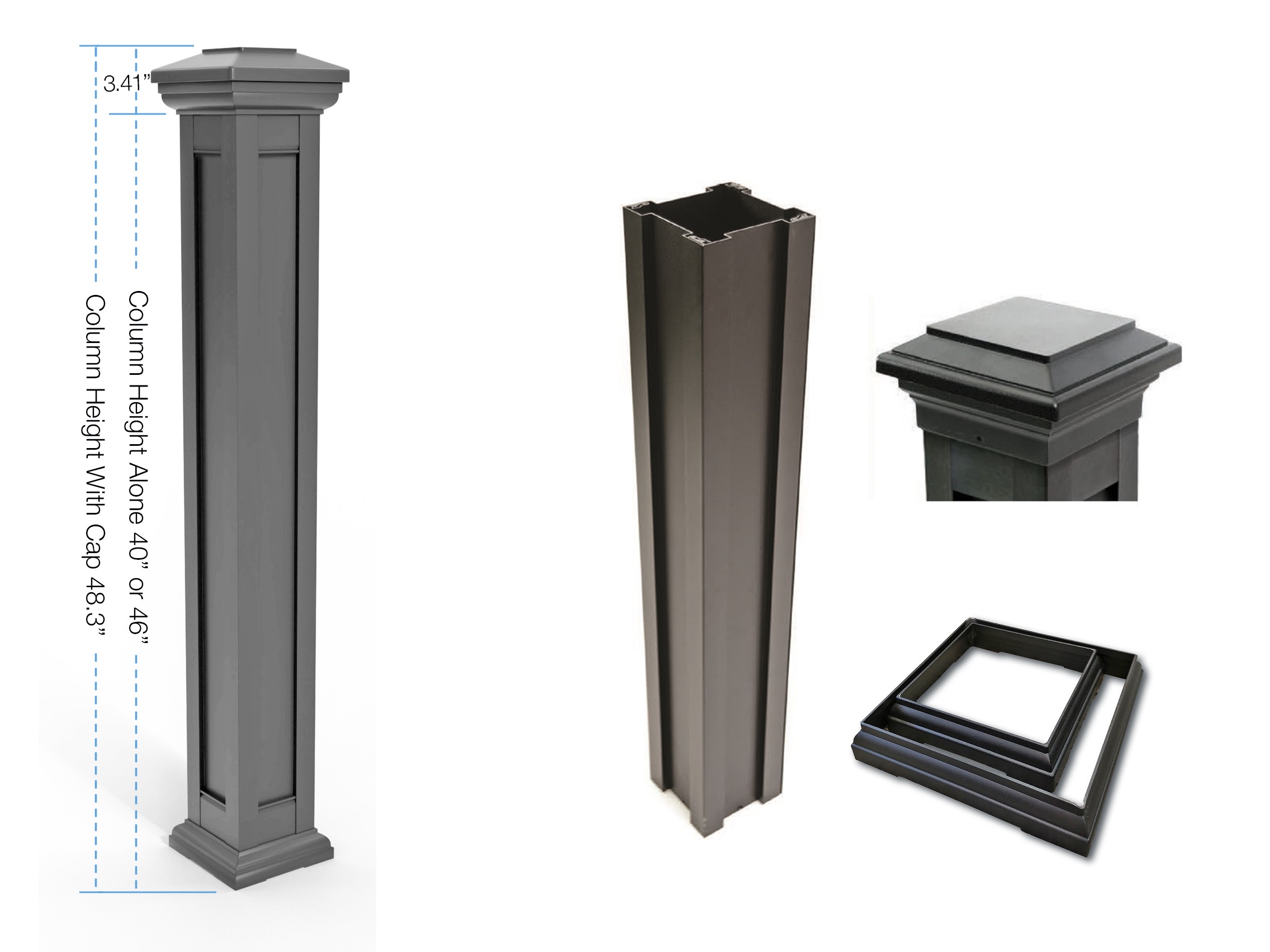

Optimum Railing - Newel Post Kit

Newel Post Kit

  • Newel Post 6” x 6” x 40” With Cap, Base and 8 Inserts
  • 40″ or 46″ high
